Grain Handling Equipment
Grainland has been importing Farm-King swingaway and conventional grain augers from Canada since 1994
and since then they have proven to be an extremely durable and
reliable with a reputation for quality.
Our range of grain augers was expanded a few
years later with the adition of Wheatheart grain
augers.
Wheatheart augers are ideally suited to
Australian conditions with a range of options including
hydraulic drive, petrol or diesel motors, PTO drive, galvanised
barrels as well as hydraulic and manual mover kits.
Our line up of equipment has continued to
expand over the years with the addition of REM Grain Vacs,
Hannaford Seed Graders, GrainAirr Silo Aerators, Crop
Circle Portable Bunkers as well as a full range of Silo Aeration
Equipment.

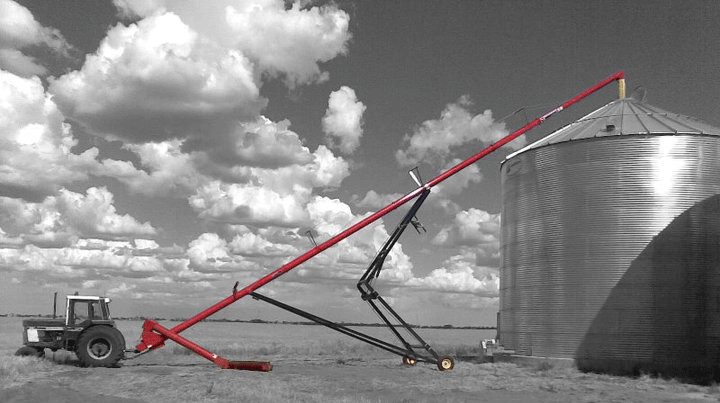

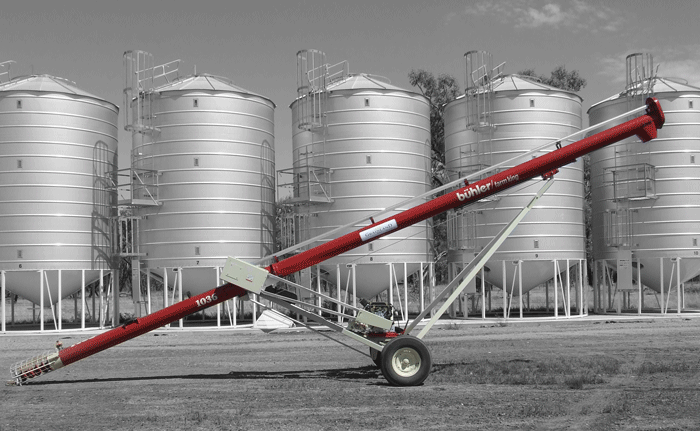

Conventional Augers
Both Wheatheart and Farm King conventional grain augers are
available in 8 and 10 inch barrel sizes with lengths ranging
from 36 foot to 61 foot.
Drive options include Honda or Kohler motors, PTO, and Hydraulic
Drive. Manual and Hydraulic mover kits are available for all our
augers. Wheatheart also have a full range galvanised barrel
augers. All conventional augers sold by Grainland come with
reversing gearbox, Drop Chute and Hopper.
Models Available - 8:36 8:41
8:51 / 10:36 10:41 10:51 10:61 / 13:36
Swingaway Augers
Grainland keep the Wheatheart and Farm King range of
Swingaway grain augers. Lengths start at 50 foot and go
right up to 104 foot, with barrel sizes of 10, 13 or 16
inch.
The largest auger in the range is the Farm King 16:104
swingaway auger which is capable of 7 tons per minute with a
maximum lift of 77 feet (23 meters) and a reach of 36 foot
(11 meters) when fully raised.
All Farm King and Wheatheart Swingaway augers come standard
with reverser kit and drop chute.
Models
Available - 10:60 10:70 10:80 / 13:70 13:81 13:85 13:91
13:95 / 16:104

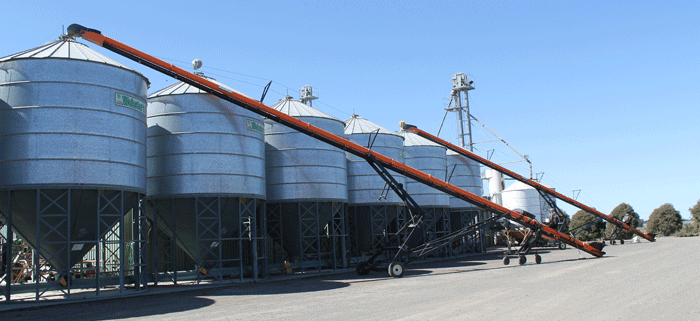

Batco Belt Conveyors
Batco Belt Conveyors minimise impact
damage to grain and pulses and provide an alternative to
conventional augers with a focus on gentle handling at a high
capacity.
With a variety of models from 40 to 120 foot long in various
configurations including Swingaway and Field Loaders. Drive
options include PTO, Electric or Petrol Motor.

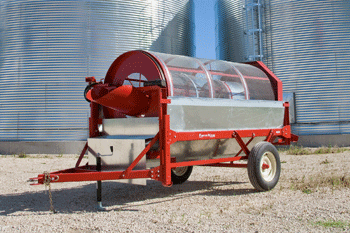

Farm King Seed Cleaner
|
The high capacity Farm King model
480 grain cleaner can handle up to 68 tons per hour,
depending on moisture content and the amount of dockage. The
two-stage screening process and large 1.2 meter diameter
drum ensures the trash and fines are thoroughly removed from
grain.
Grainland supply the Farm King seed
cleaners with Australian made CNC punched percision screens
that conform to Grain Trade Australia standards. A large
range of screens to suit wheat, chickpea, sunflowers and
canola are available with other sizes available on request.
Powered by a 3-horsepower motor,
the Farm King 480 grain cleaner includes a removable
intake auger and a hand-operated jack for in-field
operation. Fines are separated from larger screenings and
are unloaded from separate chutes. A trash pan collects the
screenings. 15" wheels and a full frame transport are
included.
|

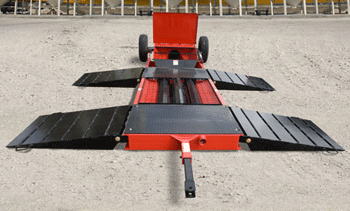

Wheatheart Drive Over Pits
 |
Wheatheart Portable Drive Over Pits are available in
10" and 13" Sizes with a low-profile operating deck
and a minimal maintenance design. Available in
hydraulic or electric drive they also feature spring
assisted ramps and a rear mounted hydraulic axle for
easy transport.
The 10" pit has dual 6" horizontal augers and a 10"
x 7' discharge. The 13" has three 6" horizontal
augers and a 13" x 7' discharge.
|
Wheatheart GULP
The Wheatheart GULP is an low profile drive over hopper that
transports with the 13" X Series Wheatheart swingaway augers.
The GULP hopper is only 4.5" (11cm) high and is ideal for the
quick unloading of B-Double, B-Tripple and Road Trains without
the need to unhitch.
The drive over unit hydraulically lowers and swings into
position while the one-touch ramp deployment provides easy setup
in minutes.

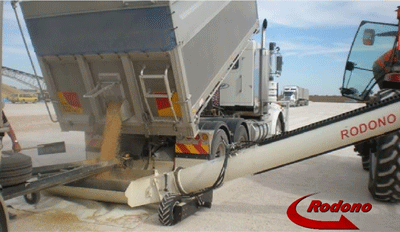

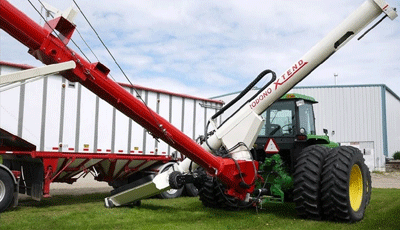

Rodono Xtend Swingaway Hopper
 |
The Rodono Xtend Retracting Swingaway Hopper replaces
the factory swingaway to allow the unloading of trucks
without the need for a drive over pit. The Xtend is
available as an option on 13" and 16" Farm King augers
and can be retrofitted to most existing augers.
9' Full Stroke
20" Working Stroke
Twin Dual Flight Screws
Power Tilt Leveling
Mates to Farm King 13" & 16"
|

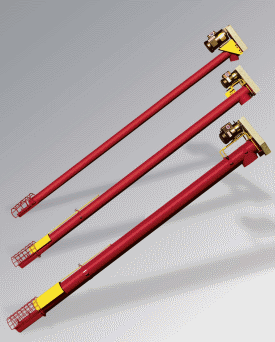

Utility Augers
 |
Utility Augers are
available in 4, 6, 8 and 10 inch barrel diameters in
various lengths with the option of electric or
hydraulic drive.
Wheatheart Utility Augers are a modular auger system
consisting of a basic auger section to which
extensions can be added to get the required length.
The 4 inch basic auger is 11 foot long and comes
with an adjustable motor mount, pulley and belt
guard. Extensions are available in 5 and 10 foot
lengths.
The 6, 8 and 10 inch models come with a 16 foot
basic auger complete with motor mount, pulley and
belt guard. Extensions are also available in 5 foot
and 10 foot lengths.
Utility Augers are suitable
for permanent and semi-permanent grain handling
installations.
|

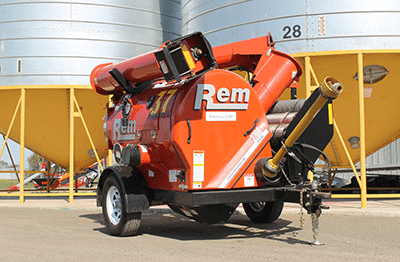

REM Grain Vacuums
|
Manufactured in Canada the Rem
Grain Vacuums have established the benchmark for
excellence in grain handling.
The Rem Grain VAC eliminates dangerous open augers
and makes empting bunkers and flat bottom silos
easy.
The REM 3700 has a capacity of approximately 215
tonnes per hour with 7.5 meters of hose and the REM
2700 is capable of 57 tonnes per hour with 7.5
meters of hose.
Grainland have REM Grain Vacs for hire as well as
outright sale.
|
Crop Circle Portable Grain Bunkers
|
Crop Circle portable grain bunkers are easy to set
up, take down and re-use. No special equipment
needed to fill (auger or grain vacuum).
Capacities range from 200 to 2000 tones. Corrugated
22 gauge galvanised steel panels are used to provide
a strong, reusable system for the temporary grain
storage.
A choice of 300 or 600 GSM Australian made tarps
provide excellent protection from the weather and
wildlife. Keep harvesting even when bins and silos
are full with the help of the Crop Circle
Crop Circles are available in 29,40,51,62,7077,90
and 100 foot diameters in either 2 foot or 4 foot
high ring heights.
|
|
Size |
Capacity Tons |
Cost Per Ton
Including |
|
|
|
300 GSM
Australian Tarp
|
|
29 foot dia x 2
foot high |
63 |
$69.08 |
|
29 foot dia x 4
foot high |
90 |
$64.87 |
|
|
|
|
|
40 foot dia x 2
foot high |
136 |
$47.51 |
|
40 foot dia x 4
foot high |
185 |
$45.35 |
|
|
|
|
|
51 foot dia x 2
foot high |
270 |
$27.90 |
|
51 foot dia x 4
foot high |
352 |
$29.43 |
|
|
|
|
|
62 foot dia x 2
foot high |
455 |
$20.58 |
|
62 foot dia x 4
foot high |
575 |
$22.18 |
|
|
|
|
|
70 foot dia x 2
foot high |
698 |
$15.41 |
|
70 foot dia x 4
foot high |
859 |
$17.30 |
|
|
|
|
|
77 foot dia x 2
foot high |
829 |
$14.39 |
|
77 foot dia x 4
foot high |
1012 |
$16.11 |
|
|
|
|
|
90 foot dia x 2
foot high |
1424 |
$10.47 |
|
90 foot dia x 4
foot high |
1694 |
$11.57 |
|
|
|
|
|
105 foot dia x 2
foot high |
2195 |
$8.28 |
|
105 foot dia x 2
foot high |
2561 |
$9.17 |
|
